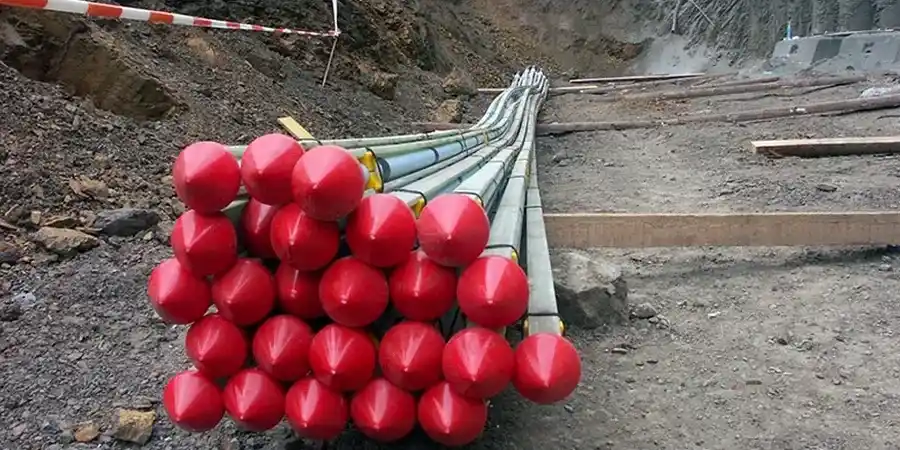

The strand jack pumps steadily on a Gallowglass Street site, tensioning a multi-strand tendon to 85% of its characteristic load. Pressure gauge reads 52 bar. Lock-off follows. This is active anchor design in Peterborough: we pre-load the steel before the excavation advances, controlling wall deflection from the start. Passive anchors work differently—no jacking, no lock-off, just a grouted fixed length that mobilises resistance only when the ground begins to move. Both systems have their place in the compact Oxford Clay and River Terrace Deposits that define Peterborough's subsoil, and selecting the wrong mechanism in a deep basement on Lincoln Road can trigger serviceability failures that show up months later. Our design process calculates bond length, free length, tendon grade, and corrosion protection class to BS 8081, then verifies each anchor against BS EN 1997-1 Design Approach 1, checking UPL, GEO, and STR limit states before a single strand is ordered. For preliminary ground data on variable fill profiles near the Nene floodplain, we often recommend a test pit investigation to bench the anchor zone geology directly.
A properly designed anchor transfers load into ground that hasn't moved yet—the difference between active pre-load and passive reaction is measured in millimetres of wall deflection.
Our approach and scope
Site-specific factors
The fen-edge climate around Peterborough—annual rainfall of 620 mm, concentrated in autumn and winter months—creates a seasonal groundwater regime that directly affects anchor performance. A retaining wall anchored in September when the water table sits at 4 metres below ground level may face a 2-metre rise by February, increasing pore pressure on the fixed length and reducing effective stress at the grout-soil interface. We design for this: all our anchor calculations use the highest credible water table from Environment Agency borehole records within 500 metres of the site, not a single snapshot from the investigation date. The risk of anchor creep in the weathered upper zone of the Oxford Clay—where the shrinkage limit drops to around 12% moisture content—requires careful assessment too. In Peterborough's more marginal ground near the Nene washes, we specify investigation anchor tests with sustained load hold periods of 60 minutes minimum, monitoring creep rate against the BS 8081 limit of 2 mm per log cycle of time. Where acceptable creep behaviour cannot be demonstrated, the design moves to a stone column treatment to stiffen the anchor zone before installation, or the fixed length is extended into the competent clay at depth.
Regulatory framework
BS 8081:2015 – Code of practice for grouted anchors, BS EN 1997-1:2004 – Eurocode 7: Geotechnical design (General rules), BS EN 1537:2013 – Execution of special geotechnical work: Ground anchors, BS 5930:2015 – Code of practice for ground investigations, BS 5896:2012 – High tensile steel wire and strand for prestressing
Linked services
Anchor design package
Full ULS and SLS design for active and passive anchors, including bond length calculation, group efficiency checks, corrosion protection specification, and construction sequence drawings.
Proof and investigation testing
On-site anchor testing to BS EN 1537 and BS 8081, with load cells, dial gauges, and data loggers recording load-displacement behaviour through sustained hold periods.
Anchor monitoring and remedial design
Long-term load monitoring for permanent anchored structures, lift-off checks at 12-month intervals, and redesign of underperforming anchors identified through creep test data.
Typical parameters
Q&A
What's the difference between active and passive anchors?
Active anchors are pre-stressed with a jack after installation, applying a known load to the structure before any excavation takes place ahead of the wall. This controls deflection from day one. Passive anchors are not tensioned; they mobilise resistance only when the wall begins to deflect and load is transferred into the fixed length. Active systems suit tight deflection limits in urban Peterborough sites; passive systems work well where some movement is permissible.
How long does anchor design and testing take for a typical Peterborough basement?
Design calculations and drawings take 8 to 12 working days from receipt of complete ground investigation data. On-site investigation anchor testing adds 3 to 5 days per anchor. Proof testing during construction runs concurrently with installation—typically 1 day of testing per 6 to 8 anchors installed.
What does anchor design cost for a project in Peterborough?
Active and passive anchor design packages in Peterborough range from £850 for a small retaining wall with two to three anchors up to £2,600 for a deep basement scheme with multiple anchor rows, group interaction analysis, and full construction sequence specification. The fee covers ULS/SLS calculations, corrosion protection specification, and anchor schedule drawings.
Do you handle the anchor installation too, or just the design?
We offer the design package and on-site testing supervision—including proof testing, investigation testing, and acceptance criteria sign-off—but we do not carry out the drilling and grouting installation directly. We can recommend experienced specialist anchor installers who work regularly in the Peterborough area and are familiar with the local Oxford Clay conditions.
